微服务服务提供者在Eureka中注册

微服务 Eureka Spring Cloud 微服务 2019/12/25
目录
  1. 服务提供者
  2. 编写服务提供者
    1. 创建一个Maven项目，依赖如下：
    2. 创建实体类：
    3. 创建DAO：
    4. 创建mapper的xml映射文件
    5. 创建controller
    6. 编写启动类
    7. 编写配置文件application.yml ：
    8. 测试

服务提供者

被其他微服务调用的微服务

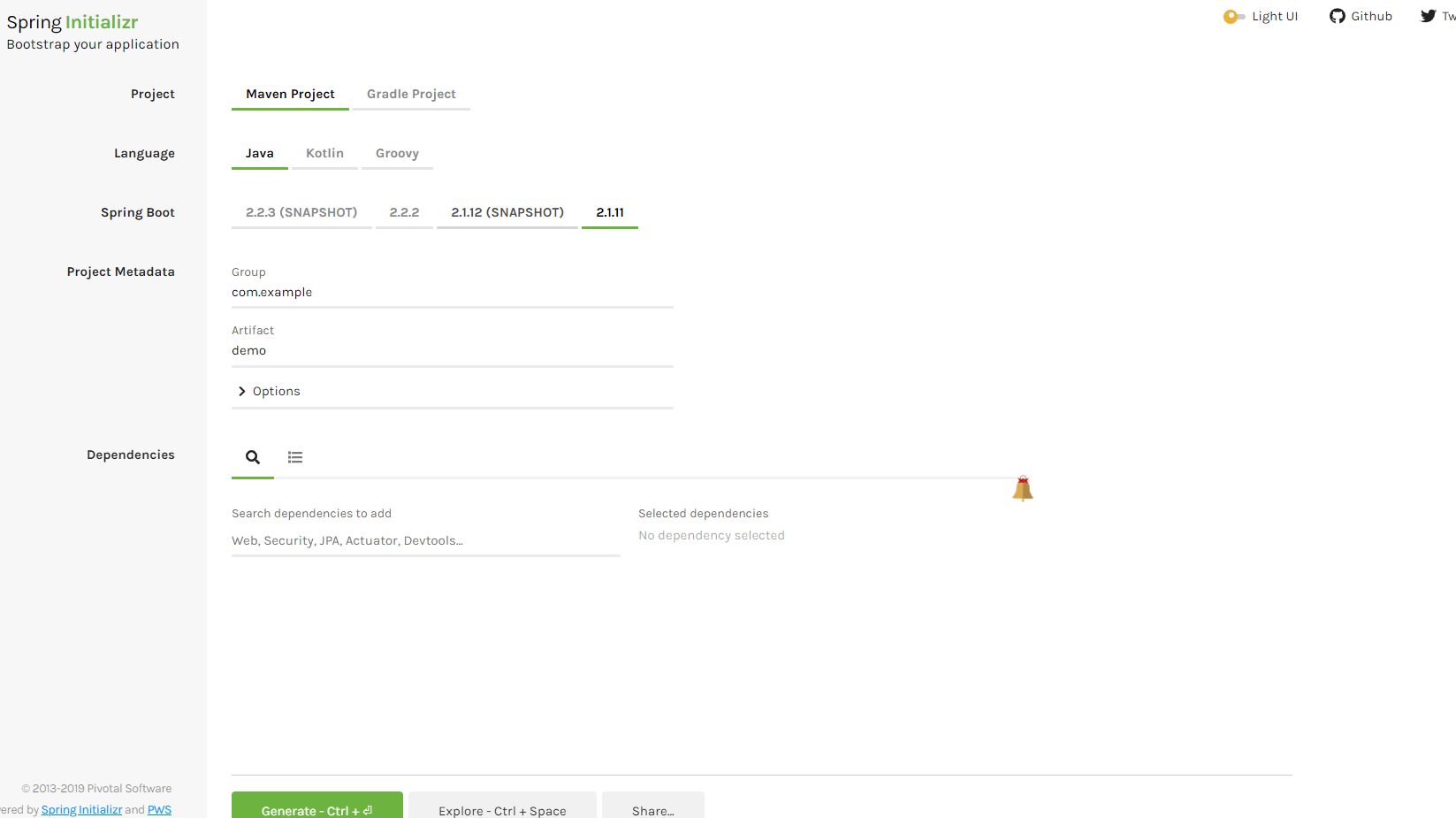

首先我们用首先打开http://start.spring.io，如下图所示，

微服务服务提供者在Eureka中注册

创建报名，项目名

microservice-provider

最后点击下方的“Generate Project”按钮， 将会生成 zip包。

microservice-provider.zip

然后解压，导入idea中。

然后开始编写代码

编写服务提供者

创建一个Maven项目，依赖如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.1.4.RELEASE</version>
		<relativePath/> <!-- lookup parent from repository -->
	</parent>
	<groupId>cn.cicoding</groupId>
	<artifactId>microservice-provider</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<name>microservice-provider</name>
	<description>Demo project for Spring Boot</description>

	<properties>
		<java.version>1.8</java.version>
	</properties>

	<dependencies>
    <!-- springboot admin jar -->
		<dependency>
			<groupId>de.codecentric</groupId>
			<artifactId>spring-boot-admin-starter-client</artifactId>
			<version>2.1.4</version>
		</dependency>
		<dependency>
			<groupId>org.mybatis.spring.boot</groupId>
			<artifactId>mybatis-spring-boot-starter</artifactId>
			<version>2.0.1</version>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
			<exclusions>
				<!--排除默认的tomcat-jdbc-->
				<exclusion>
					<groupId>org.apache.tomcat</groupId>
					<artifactId>tomcat-jdbc</artifactId>
				</exclusion>
			</exclusions>
		</dependency>

		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<scope>runtime</scope>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-logging</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-actuator</artifactId>
		</dependency>
		<dependency>
			<groupId>org.projectlombok</groupId>
			<artifactId>lombok</artifactId>
			<optional>true</optional>
		</dependency>
		<dependency>
			<groupId>org.springframework.cloud</groupId>
			<artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>
		<!--<dependency>-->
			<!--<groupId>org.springframework.cloud</groupId>-->
			<!--<artifactId>spring-cloud-starter-openfeign</artifactId>-->
		<!--</dependency>-->
	</dependencies>

	<dependencyManagement>
		<dependencies>
			<dependency>
				<groupId>org.springframework.cloud</groupId>
				<artifactId>spring-cloud-dependencies</artifactId>
				<version>Greenwich.SR1</version>
				<type>pom</type>
				<scope>import</scope>
			</dependency>
		</dependencies>
	</dependencyManagement>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>

</project>

创建实体类：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
package com.example.model;

public class UserDomain {

    private Integer userId;

    private String userName;

    private String password;

    private String phone;

    public Integer getUserId() {
        return userId;
    }

    public void setUserId(Integer userId) {
        this.userId = userId;
    }

    public String getUserName() {
        return userName;
    }

    public void setUserName(String userName) {
        this.userName = userName;
    }

    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password;
    }

    public String getPhone() {
        return phone;
    }

    public void setPhone(String phone) {
        this.phone = phone;
    }
}

创建DAO：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
package com.example.dao;

import com.example.model.UserDomain;
import org.apache.ibatis.annotations.Mapper;
import org.apache.ibatis.annotations.Param;

import java.util.List;

@Mapper
public interface UserDao {

    int insert(UserDomain record);

    void deleteUserById(@Param("userId") Integer userId);

    void updateUser(UserDomain userDomain);

    List<UserDomain> selectUsers();

    UserDomain findById(Integer id);
}

创建mapper的xml映射文件

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.example.dao.UserDao" >
    <sql id="BASE_TABLE">
        t_user
    </sql>

    <sql id="BASE_COLUMN">
        userId,userName,password,phone
    </sql>

    <insert id="insert" parameterType="com.example.model.UserDomain">
        INSERT INTO
        <include refid="BASE_TABLE"/>
        <trim prefix="(" suffix=")" suffixOverrides=",">
            userName,password,
            <if test="phone != null">
                phone,
            </if>
        </trim>
        <trim prefix="VALUES(" suffix=")" suffixOverrides=",">
            #{userName, jdbcType=VARCHAR},#{password, jdbcType=VARCHAR},
            <if test="phone != null">
                #{phone, jdbcType=VARCHAR},
            </if>
        </trim>
    </insert>

    <delete id="deleteUserById">
      DELETE FROM
      <include refid="BASE_TABLE"/>
      WHERE
      userId = #{userId, jdbcType=INTEGER}
    </delete>
    <!-- 更新用户信息，为空的字段不进行置空 -->
    <update id="updateUser" parameterType="com.example.model.UserDomain">
        UPDATE
        <include refid="BASE_TABLE"/>
        <set>
          <if test="userName != null">
              userName = #{userName, jdbcType=VARCHAR},
          </if>
          <if test="password != null">
              password = #{password, jdbcType=VARCHAR},
          </if>
          <if test="phone != null">
              phone = #{phone, jdbcType=VARCHAR},
          </if>
        </set>
        <where>
            userId = #{userId, jdbcType=INTEGER}
        </where>
    </update>

    <select id="selectUsers" resultType="com.example.model.UserDomain">
        SELECT
        <include refid="BASE_COLUMN"/>
        FROM
        <include refid="BASE_TABLE"/>
    </select>

    <select id="findById" resultType="com.example.model.UserDomain">
        SELECT
        <include refid="BASE_COLUMN"/>
        FROM
        <include refid="BASE_TABLE"/>
        where userId = #{id}
    </select>


</mapper>

创建controller

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
package com.example.controller;

import com.example.model.UserDomain;
import com.example.service.UserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.*;

@RestController
@RequestMapping("/user")
public class UserController {

    @Autowired
    private UserService userService;

    @PostMapping("")
    public ResponseEntity addUser(@RequestParam(value = "userName", required = true) String userName, @RequestParam(value = "password", required = true)
            String password, @RequestParam(value = "phone", required = false) String phone){
        UserDomain userDomain = new UserDomain();
        userDomain.setUserName(userName);
        userDomain.setPassword(password);
        userDomain.setPhone(phone);
        userService.insert(userDomain);
        return ResponseEntity.ok("添加成功");
    }

    @DeleteMapping("")
    public ResponseEntity deleteUser(@RequestParam(value = "userId", required = true) Integer userId){

        userService.deleteUserById(userId);
        return ResponseEntity.ok("删除成功");
    }

    @PutMapping("")
    public ResponseEntity updateUser(@RequestParam(value = "userId", required = true) Integer userId, @RequestParam(value = "userName", required = false) String userName,
            @RequestParam(value = "password", required = false) String password, @RequestParam(value = "phone", required = false) String phone ){
        UserDomain userDomain = new UserDomain();
        userDomain.setUserId(userId);
        userDomain.setUserName(userName);
        userDomain.setPassword(password);
        userDomain.setPhone(phone);
        userService.updateUser(userDomain);
        return ResponseEntity.ok("更新成功");
    }

    @GetMapping("")
    public ResponseEntity getUsers(){
        return ResponseEntity.ok(userService.selectUsers());
    }

    @GetMapping("/{id}")
    public UserDomain findById(@PathVariable Integer id) {
        return this.userService.findById(id);
    }

}
  • 其中， @GetMapping，是Spring 4.3提供的新注解。它是一个组合注解，等价于@RequestMapping(method = RequestMethod.GET)，用于简化开发。同理还有@PostMapping、@PutMapping、@DeleteMapping、@PatchMapping等。

编写启动类

1
2
3
4
5
6
7
8
9
10
11
12
13
14
package com.example;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;
@EnableEurekaClient
@SpringBootApplication
public class ProviderApplication {

	public static void main(String[] args) {
		SpringApplication.run(ProviderApplication.class, args);
	}

}

@SpringBootApplication是一个组合注解，它整合了@Configuration、@EnableAutoConfiguration和@ComponentScan注解，并开启了Spring Boot程序的组件扫描和自动配置功能。在开发Spring Boot程序的过程中，常常会组合使用@Configuration、@EnableAutoConfiguration和@ComponentScan等注解，所以Spring Boot提供了@SpringBootApplication，来简化开发。

编写配置文件application.yml ：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
eureka:
    client:
        service-url:
            defaultZone: http://${eureka.instance.hostname}:8888/eureka/
    instance:
        hostname: localhost
logging:
    level:
        com:
            example: debug
        root: info
        web: trace
management:
    endpoint:
        health:
            show-details: always
    endpoints:
        web:
            exposure:
                include: '*'
mybatis:
    mapper-locations: classpath:mapper/*.xml
    type-aliases-package: com.example.model
server:
    port: 8080
spring:
    application:
        name: microservice-provider
    boot:
        admin:
            client:
                url: http://localhost:8788
    datasource:
        auto-commit: true
        default-auto-commit: true
        driver-class-name: com.mysql.cj.jdbc.Driver
        initial-size: 5
        max-idle: 10
        max-wait: 10000
        maximum-pool-size: 100
        min-idle: 5
        minEvictableIdleTimeMillis: 300000
        password: root
        test-on-borrow: false
        test-while-idle: true
        time-between-eviction-runs-millis: 18800
        url: jdbc:mysql://localhost:3309/mytest?useSSL=false&useUnicode=true&characterEncoding=utf-8&allowMultiQueries=true&allowPublicKeyRetrieval=true&serverTimezone=UTC&autoReconnect=true
        username: root
        validation-query: SELECT 1

传统Web应用开发中，常使用properties格式文件作为配置文件。Spring Boot以及Spring Cloud支持使用properties或者yml格式的文件作为配置文件。
yml文件格式是YAML（Yet Another Markup Language）编写的文件格式，YAML和properties格式的文件可互相转换，例如本节中的application.yml，就等价于如下的properties文件：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
server.port=8080

eureka.instance.hostname=localhost

#### 数据库连接池属性
spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver
#spring.datasource.url=jdbc:mysql://10.254.193.154:3306/mytest?useSSL=false&useUnicode=true&characterEncoding=utf-8&allowMultiQueries=true&allowPublicKeyRetrieval=true
spring.datasource.url=jdbc:mysql://localhost:3309/mytest?useSSL=false&useUnicode=true&characterEncoding=utf-8&allowMultiQueries=true&allowPublicKeyRetrieval=true&serverTimezone=UTC&autoReconnect=true
spring.datasource.username=root
spring.datasource.password=root
#自动提
spring.datasource.default-auto-commit=true
#指定updates是否自动提交
spring.datasource.auto-commit=true
spring.datasource.maximum-pool-size=100
spring.datasource.max-idle=10
spring.datasource.max-wait=10000
spring.datasource.min-idle=5
spring.datasource.initial-size=5
spring.datasource.validation-query=SELECT 1
spring.datasource.test-on-borrow=false
spring.datasource.test-while-idle=true
# 配置间隔多久才进行一次检测，检测需要关闭的空闲连接，单位是毫秒
spring.datasource.time-between-eviction-runs-millis=18800
# 配置一个连接在池中最小生存的时间，单位是毫秒
spring.datasource.minEvictableIdleTimeMillis=300000

# mybatis对应的映射文件路径
mybatis.mapper-locations=classpath:mapper/*.xml
# mybatis对应的实体类
mybatis.type-aliases-package=com.example.model

#logging.config = classpath:logback.xml
logging.level.root=info
logging.level.com.example= debug

# 指定注册到eureka server上的服务名称
spring.application.name=microservice-provider


spring.boot.admin.client.url=http://localhost:8788


# 开放所有监控端点
management.endpoints.web.exposure.include=*
# 是否展示健康检查详情
management.endpoint.health.show-details = always

# 指定eureka server通信地址，注意/eureka/小尾巴不能少
#eureka.client.service-url.defaultZone=http://10.254.193.30:9001/eureka/,http://10.254.193.31:9002/eureka/,http://10.254.193.32:9003/eureka/
eureka.client.service-url.defaultZone=http://${eureka.instance.hostname}:8888/eureka/

# 是否注册IP到eureka server，如不指定或设为false，那就会注册主机名到eureka server
#eureka.instance.prefer-ip-address=true
#eureka.instance.ip-address=10.254.193.120
#eureka.instance.prefer-ip-address=false
#eureka.instance.hostname=10.254.193.129
logging.level.web=trace

从中不难看出，YAML比properties结构清晰；可读性、可维护性也更强，并且语法非常简洁。因此，本书使用YAML格式作为配置文件。但，yml有严格的缩进，并且key与value之间使用: 分隔，冒号后的空格不能少，请大家注意。

测试

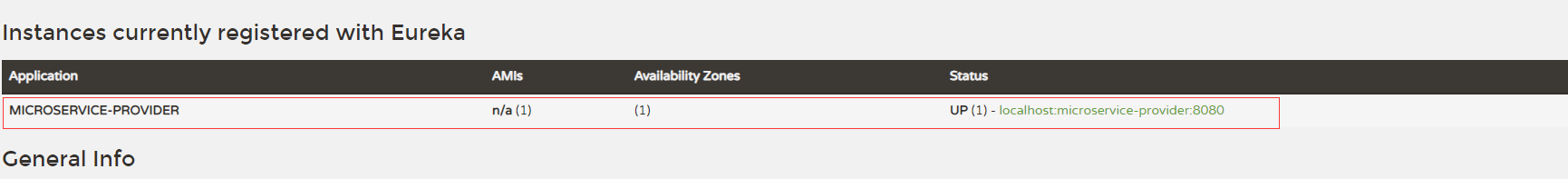

启动eureka，然后启动我们的microservices-provider,在eureka中可以看到注册上去了

image-20191226091541936

至此，我们完成了服务提供者注册到eureka！

相关文章

赏
微信打赏

赞赏是不耍流氓的鼓励

转载声明：本博客由小小冒险家创作，采用 CC BY 3.0 CN 许可协议。可自由转载、引用，但需署名作者且注明文章出处。如转载至微信公众号，请在文末添加作者公众号二维码。
访问量:   |   访客数:
Copyright © 2018 - 2023 | Powered by Hexo | 鲁ICP备18033870号
